Honda Africa Twin XRV 750 N 92' (RD04)

I bought my bike with 34'000 km for 3'600 swiss francs with a crap givi packing system. Below you will find all modifications as my bike looks now a little different.



Modifications winter 13/14

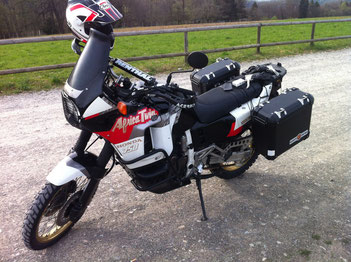

You see the givi packing system has been removed, now my AT own two 39 liters HEAVY DUTIES panniers handmade in Romania.

handlebar RENTHAL and handlebar risers 25mm

handelbar dakar should not break down in a crash and is more secure than the original one, bought at www.africanqueens.de

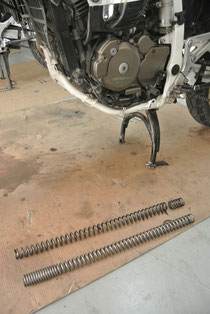

new front springs from WIRTH

the springs should be stronger and make the AT more like a bike of the 21st century, and yes they are I already tested it. on the picture you see in front the new and in the back the old original one.

rally shield and grille

both rally shield and grille for the front lamps come from www.africanqueens.de , the rally shield looks sexy and is better to avoid wind during fast rides. the grille is to protect the lamps from stones and of course it looks more adventurous.

D.I.D chain

i gave my AT a brand new D.I.D endless chain and new steel sprockets.

Heavy Duties Panniers and Rack

thanks to the Africa Twin UK Forum I found these panniers, they are handmaded in Romania by Alex a very friendly guy. They are brilliant and look strong. www.heavyduties.ro

ACREBIS handprotectors

Oil- and Airfilter

chain protector from Touratech

2x USB 12V

GPS GARMIN Montana 600

Heidenau K60 Scout tyres

other stuff or repairings

I had big problems with my speedometer, first i thougt it is only the plastic thing inside the speedometer, but finally found out i need a new speedometer, a little expensive but works fine now. I bought a HONDA original parts speedometer.



Service Infromation
Front Fork Oil cc (right leg) : 635cc
Fork oil grade : 5w-fork oil
Valve Clearance Cold - Inlet : 0.13mm - 0.17mm
Valve Clearance Cold - Exhaust : 0.18mm - 0.22mm
Cooling System (litres) : approx 2.0 litres
Engine Oil Grade SAE : sae 10w/40
Engine Oil quantity with filter (litres) : 2.4 litres
Engine Oil quantity (litres) : 2.2 litres
Engine Oil quantity (litres) : 118mm
Idle Speed (rpm) : 1200 +/- 100 rpm
Spark Plugs Gap (mm) : 0.8mm - 0.9mm
Chain Freeplay mm : 35 - 45mm
Float Height : 7.0mm







Brakes

Front Twin Disc
Front Disc Size 276mm
Front-Pistons-per-caliper twin piston
Rear Disc
Rear Disc Size 256mm
Rear-Pistons-per-caliper single piston
Brake fluid dot.4
Dimensions
Length 2315mm to 2380mm
Width 895mm
Height 1420mm
Seat Height 880mm
Wheelbase 1565mm
Ground Clearance 225mm
Dry Weight 210kg
Fuel Capacity 24 litres
Reserve Fuel Capacity none, [ warning light system ]
Electrics
Voltage 12v
Main Fuse 30A
Ignition cdi with electronic advance
Spark Plugs NGK-DPR8EA-9
Bulb-Headlight 60/55w
Battery 12V-12AH
Ignition Timing 10 BTDC at idle. [ fully avanced 30 BTDC at 4,500rpm ]
Engine
Type Liquid Cooled 4 Stroke V Twin
Bore x Stroke 81x72mm
Compression Ratio 9.0:1
Displacement 742
No. of Valves 6
Carburation 2x36.0mm keihin cv type
Carburation Main Jet front #118,rear #122
Pilot Screw Setting 2-1/4 turns out
Transmission
Clutch Type Wet Multi-plate,cable operated
Final Drive chain-sprockets
Transmission 5-speed constant mesh
Misc.
Motorcycle Style Dual Sport/Adventure
Frame single down with double-loop cradle,rectangular section
Suspension
Front 43mm oil damped telescopic forks
Rear single shock obsorber,rising rate linkage pro-link box
Front Travel 220mm
Rear Travel 210mm
Tyres
Front 90/90-H21-54s Tubed
Rear 130/80-H17-65s Tubed
Wheels
Front 21 inch spoke
Rear 17 inch spoke
